Camera Solutions for MAN Trucks

AXION solutions for retrofitting of side and rear-view cameras on MAN Trucks

MAN MMT_3 Advanced with 7-inch or 12.3-inch display

AXION offers adaptations for retrofitting a rear view camera for the new MMT3 system. There are two different adapters for this, which are used depending on the existing camera preparation.

The 7 inch MAN Mediasystem Advanced / Mediasystem Navigation Advanced is equipped with one (code 0P2LY) / two* (code 0P2M0) inputs for external cameras (e.g. rear view camera, side view camera or load compartment camera).

The 12.3-inch MAN Mediasystem Navigation Professional (Code 0P2LZ) has preparation for two* external cameras ex works.
The inputs can be displayed manually using buttons on the radio unit or automatically during certain functions (e.g. reverse gear). For example, images from the rearview camera can be displayed automatically on the monitor when reverse gear is engaged. Or the driver can manually switch to an existing second camera*, e.g. in the cargo area.

MAN MMT Advanced with 7 inch display

For the new MMT-system (Model 350NP), we at AXION offers adapters for retrofitting a rear-view camera. There are two different adapters which can be used for several camera preperations of the radio advanced.

Oops, an error occurred! Code: 202412291959201039816a

MAN MMT 5 inch radio system

Interface for connection of an AXION camera to a MAN MMT System, 12/24 V DC

CA-MMT

Interface for connection of an AXION camera to a MAN MMT System.
No coding by MAN necessary.

request product find a merchant

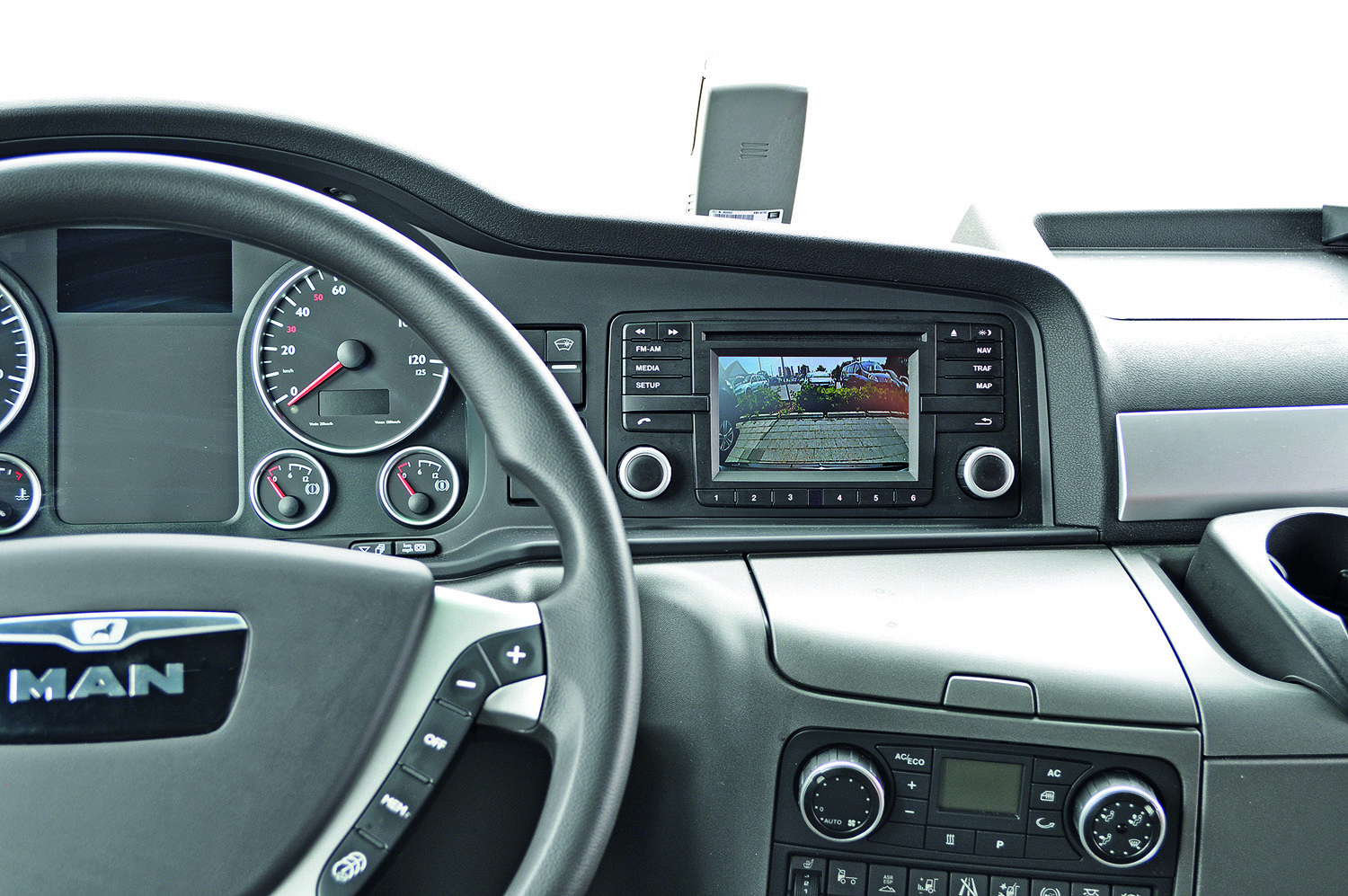

  • The MAN MMT 5-inch radio system (MMT 1 / 350NW) has an input for external cameras (e.g. reversing camera, side camera or cargo area camera). The input can be displayed manually via a switching signal or automatically for certain functions (e.g. reverse gear).
    For example, images from the rear view camera can be automatically displayed on the monitor when reverse gear is engaged.

    The CA-MMT adapter makes it easy to retrofit an AXION camera to the MMT 5 inch system without original preparation for external cameras. (It may be necessary to enable the function via MAN)

    • Interface for connection of an AXION camera to a MAN MMT System, 12/24 V DC
Technical changes and errors excepted.

matching cameras

Interface for connection of an AXION shutter camera to a MAN MMT System, 12/24 V DC

CA-MMT-S

Interface for connection of an AXION shutter camera to a MAN MMT System. No coding by MAN necessary.

request product find a merchant

  • The MAN MMT 5-inch radio system (MMT 1 / 350NW) has an input for external cameras (e.g. reversing camera, side camera or cargo area camera). The input can be displayed manually via a switching signal or automatically for certain functions (e.g. reverse gear).
    For example, images from the rear view camera can be automatically displayed on the monitor when reverse gear is engaged.

    The CA-MMT-S adapter makes it easy to retrofit an AXION camera to the MMT 5 inch system without original preparation for external cameras. (It may be necessary to enable the function via MAN)

    • Adapter cable for connection of an AXION shutter camera to a MAN MMT system
    • No coding required by MAN
    • For 12 and 24 V application
    • For e.g. DBC 114065S1, DBC 114067SHD
Technical changes and errors excepted.

MAN MMT 5 inch radio systems with camera preparation 351LZ

Adapter for connection of an AXION camera to a MAN MMT system with preparation 351LZ

CA-MMT351

Adapter cable for connection of an AXION camera to a MAN MMT system with preparation 351LZ.
No coding required by MAN.

request product find a merchant

  • The MAN MMT 5-inch radio system (MMT 1 / 350NW) has an input for external cameras (e.g. reversing camera, side camera or cargo area camera). The input can be displayed manually via a switch in the instrument panel or automatically for certain functions (e.g. reverse gear).
    For example, images from the rear view camera can be automatically displayed on the monitor when reverse gear is engaged. Or the driver can manually switch to an existing camera, e.g. in the cargo area.

    The CA-MMT 351 adapter makes it easy to retrofit an AXION camera to the MMT 5-inch system with the 351LZ preparation for external cameras.

    • Interface for connecting an AXION camera to a MAN MMT system with camera preparation Code 351LZ, 12/24 V DC

    (for cameras with motorized shutter (shutter cameras), use the CA-MMT351-S adapter)

Technical changes and errors excepted.

compatible cameras

Adapter for connection of an AXION shutter camera to a MAN MMT system with preparation 351LZ

CA-MMT351-S

Adapter cable for connection of an AXION shutter camera to a MAN MMT system with preparation 351LZ.
No coding required by MAN.

request product find a merchant

  • The MAN MMT 5-inch radio system (MMT 1 / 350NW) has an input for external cameras (e.g. reversing camera, side camera or cargo area camera). The input can be displayed manually via a switch in the instrument panel or automatically for certain functions (e.g. reverse gear).
    For example, images from the rear view camera can be automatically displayed on the monitor when reverse gear is engaged. Or the driver can manually switch to an existing camera, e.g. in the cargo area.

    The CA-MMT 351-S adapter makes it easy to retrofit an AXION camera to the MMT 5-inch system with the 351LZ preparation for external cameras with motorised shutter.

    • Interface for connection of an AXION shutter camera to a MAN MMT System with preparation for camera code 351LZ, 12/24 V DC (z.B. DBC 114065S1, DBC 114067SHD)
Technical changes and errors excepted.
