Interface for connecting an AXION camera to a Mercedes TCC Touch J2H system, 12/24 V DC

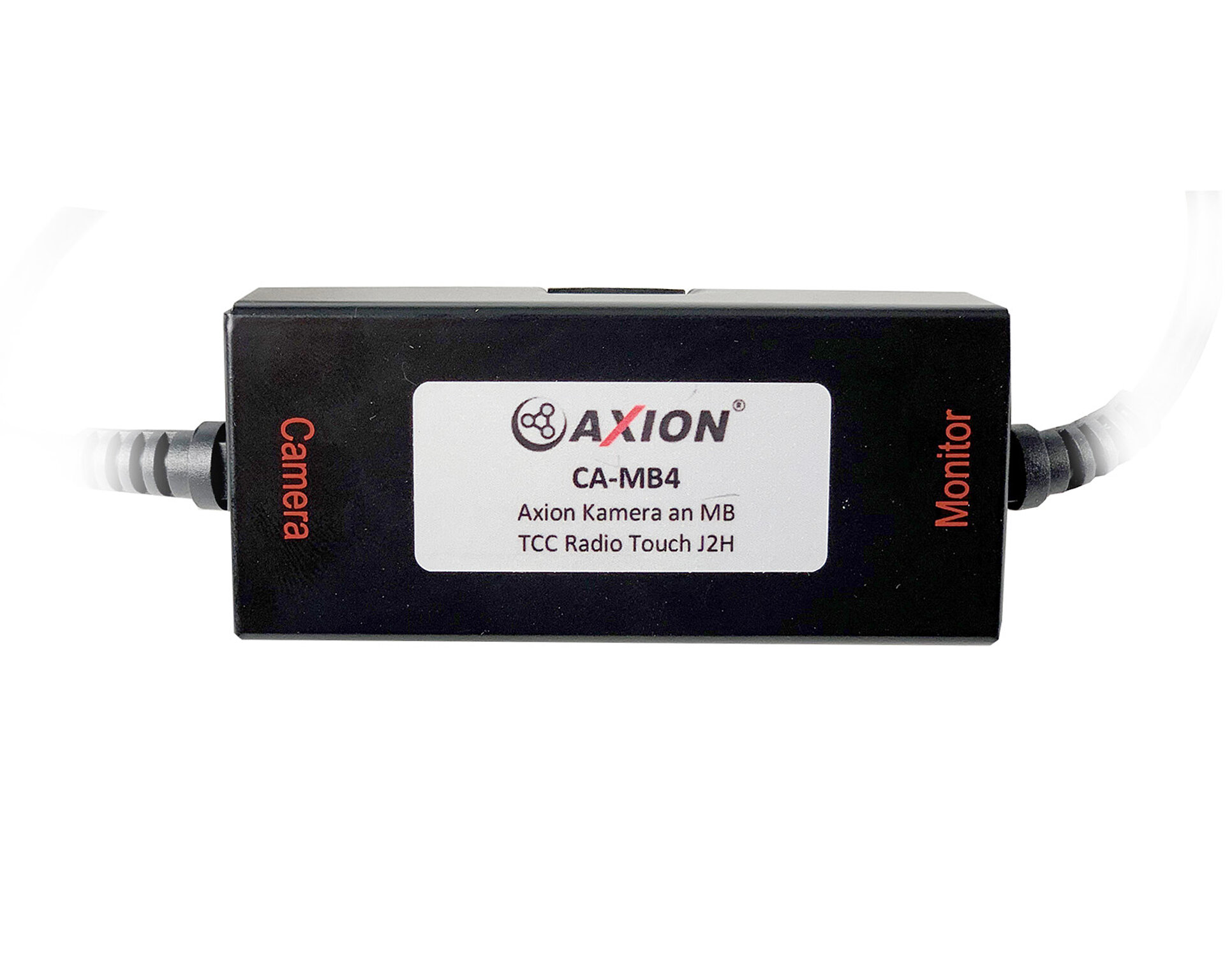

CA-MB4

Adapter for quick and easy retrofitting of an AXION rear view camera or turn-assist in vehicles with the Mercedes TCC Touch Radio (J2H Multimedia Radio Touch).

  • Adapter for quick and easy retrofitting of an AXION rear view camera or turn-assist in vehicles with the Mercedes TCC Touch Radio (J2H Multimedia Radio Touch).

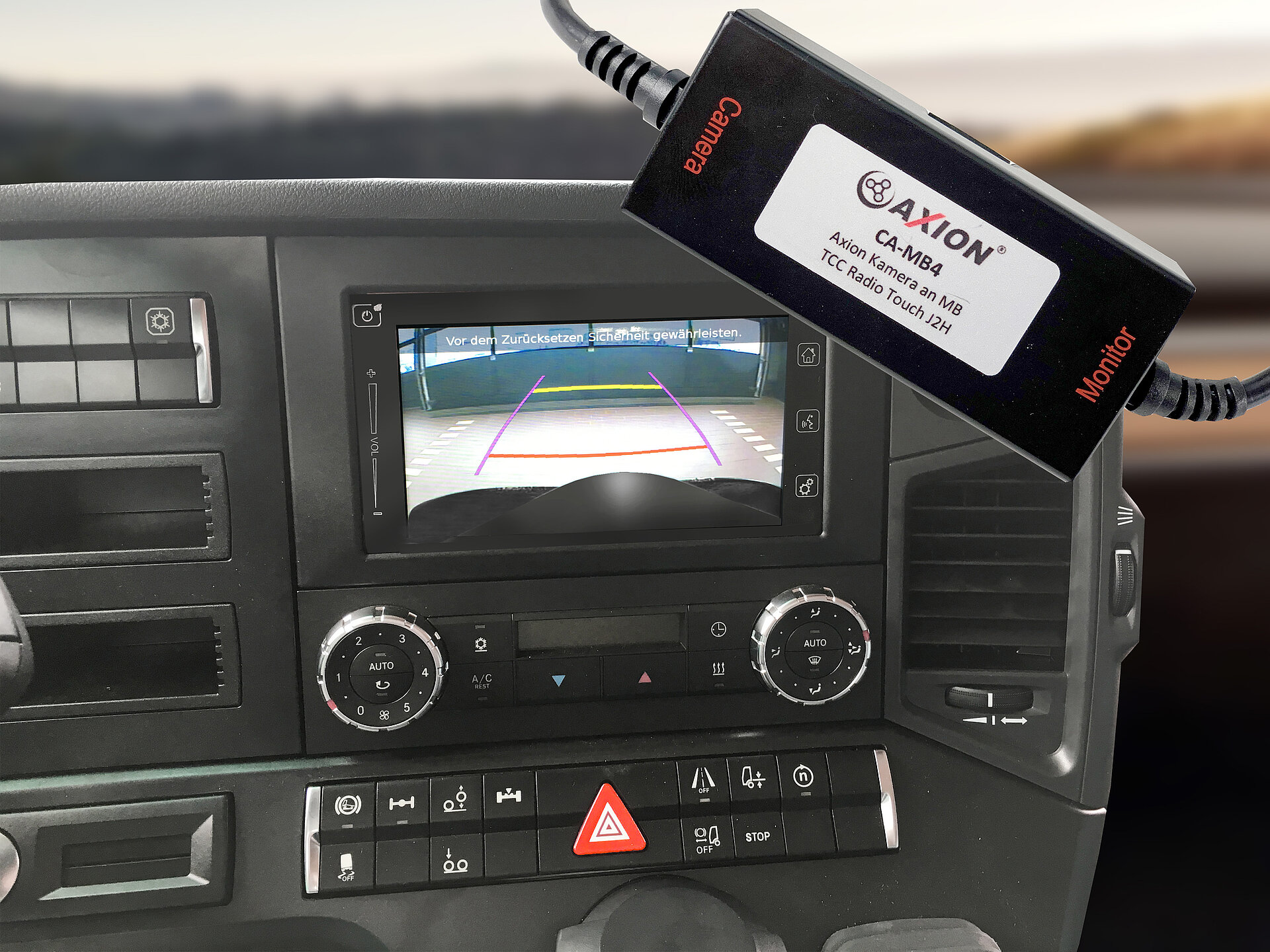

    With the CA-MB4 adapter you can connect a rear view camera or an ICA-B2CH turn-assist system to the Mercedes TCC Touch Radio (J2H Multimedia Radio Touch).
    The camera image is displayed on the monitor via a switching signal or automatically for certain functions (e.g. reverse gear).
    For example, the images of the ICA-B2CH turn-assist can be automatically displayed on the monitor when the right-hand indicator is activated.

    • Interface for connecting an AXION camera to a Mercedes TCC Touch J2H system, 12/24 V DC

    Important notes:

    • only to be used with TCC Touch Radio J2H up to and including 03/2019. Newer devices do not support camera function
    • not compatible with TCC Touch Radio J2G with DAB+ and SD slot
Technical changes and errors excepted.
