MI6-MBN6_DT

Camera interface for uncomplicated retrofitting of AXION cameras ( rear view camera, side camera, front camera, etc.) in Mercedes-Benz trucks with (26 cm/10.25") multi-touch display.

For vehicles equipped with the Multimedia Cockpit J6B/J6C and Multi-Touch Display, our interface MI6-MBN6_DT can be used to connect up to 4 cameras.
The display of the individual camera images is in full screen. Can be used independently of a factory fitted J9P pre-equipment.

• Video interface for Mercedes-Benz trucks with (26 cm/10.25") multi-touch display, e.g. ACTROS 5 / AROCS
• no factory J9P preparation for cameras needed
• 4 video inputs (2x AXION DIN rear camera/front camera, 2x Cinch for further cameras e.g. side camera left/right)

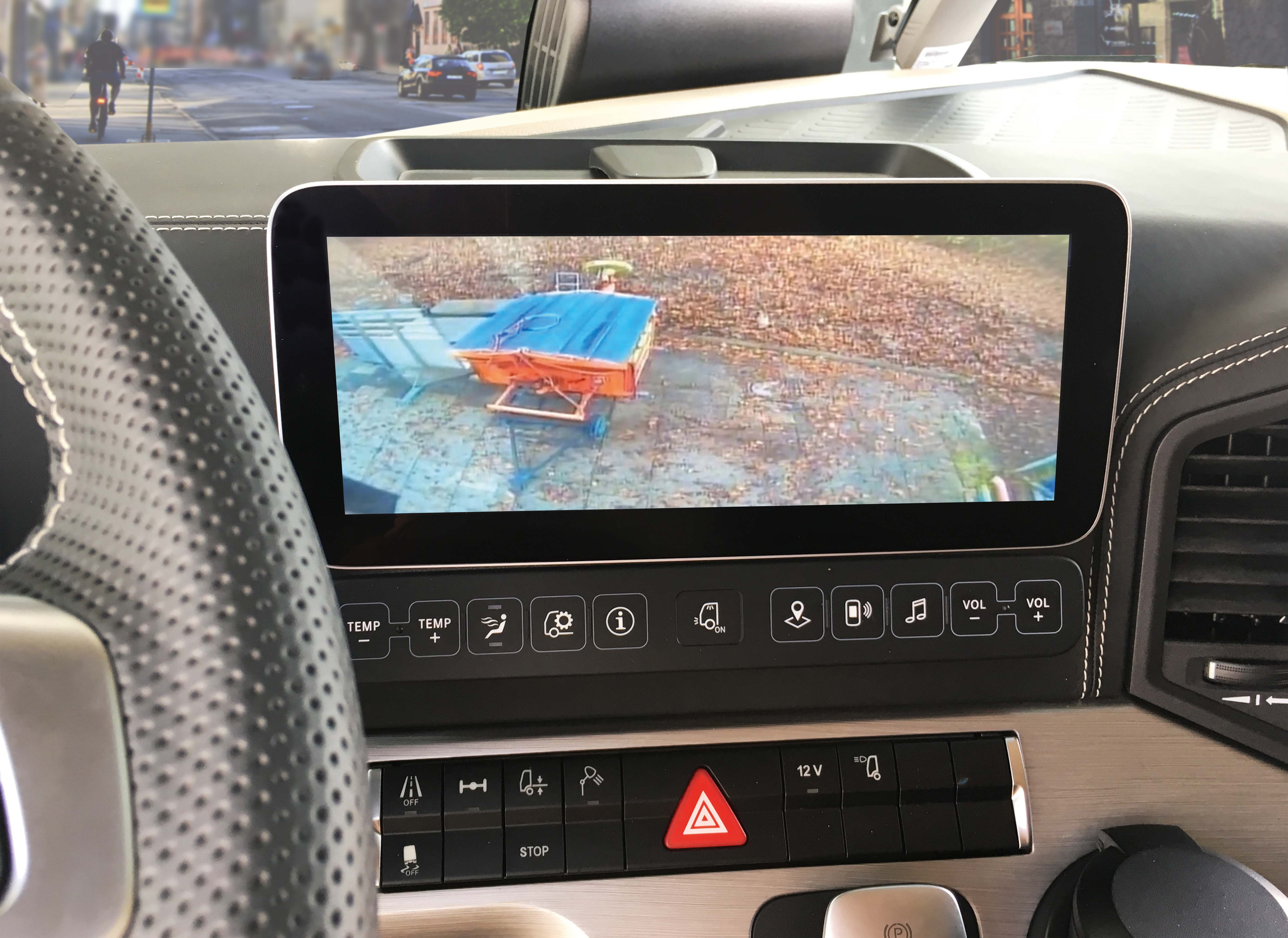

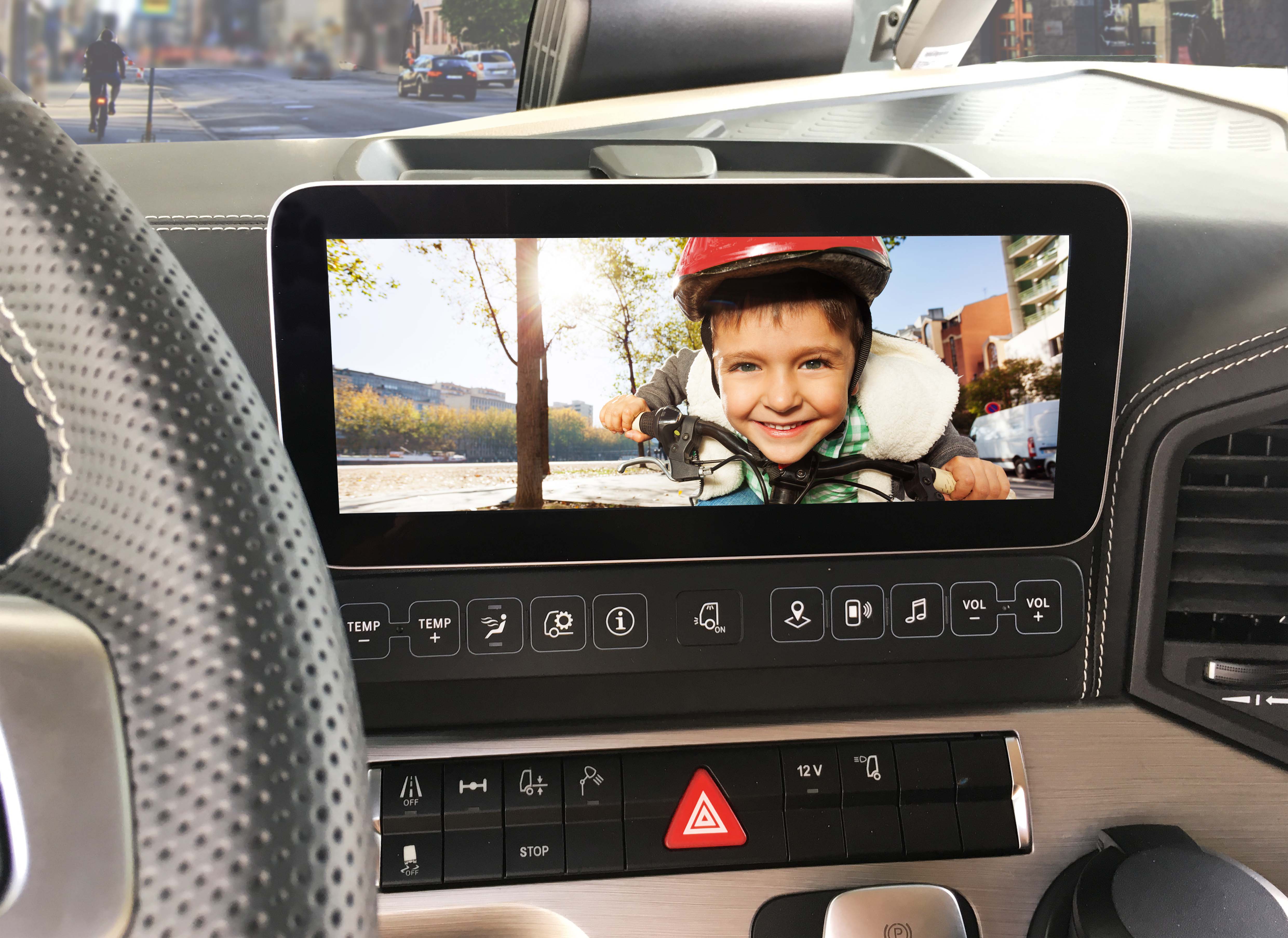

• Single image display in full screen
• Camera activation via reverse gear, turn signal or manually
• Own OnScreen menu for easy configuration
• Automatic switching to all camera inputs considering different switching logics
• 2 independent switching outputs (+12V max. 1A)
• USB update port for software updates
