Interface to retrofit a rear-view camera for BMW vehicles of the F-Series, MINI with CIC-Navigationssystem or Radio Plug & Play
MI5-CIC-F-PNP
The MI5-CIC-F-PNP allows to retrofit 2 cameras(front and rear-view camera) to the original system of the manufacturer.
The connection of the interface is "Plug & Play"- there is no need to modificate the original vehicle wiring harness.
-
- Settings are changed via a separate on-screen menu
- 2 switching outputs (+ 12V max. 1A), adjustable switching logic (CAN, ignition, reversing camera, reversing)
- 1 x rear-view camera input
- 1 x front camera input

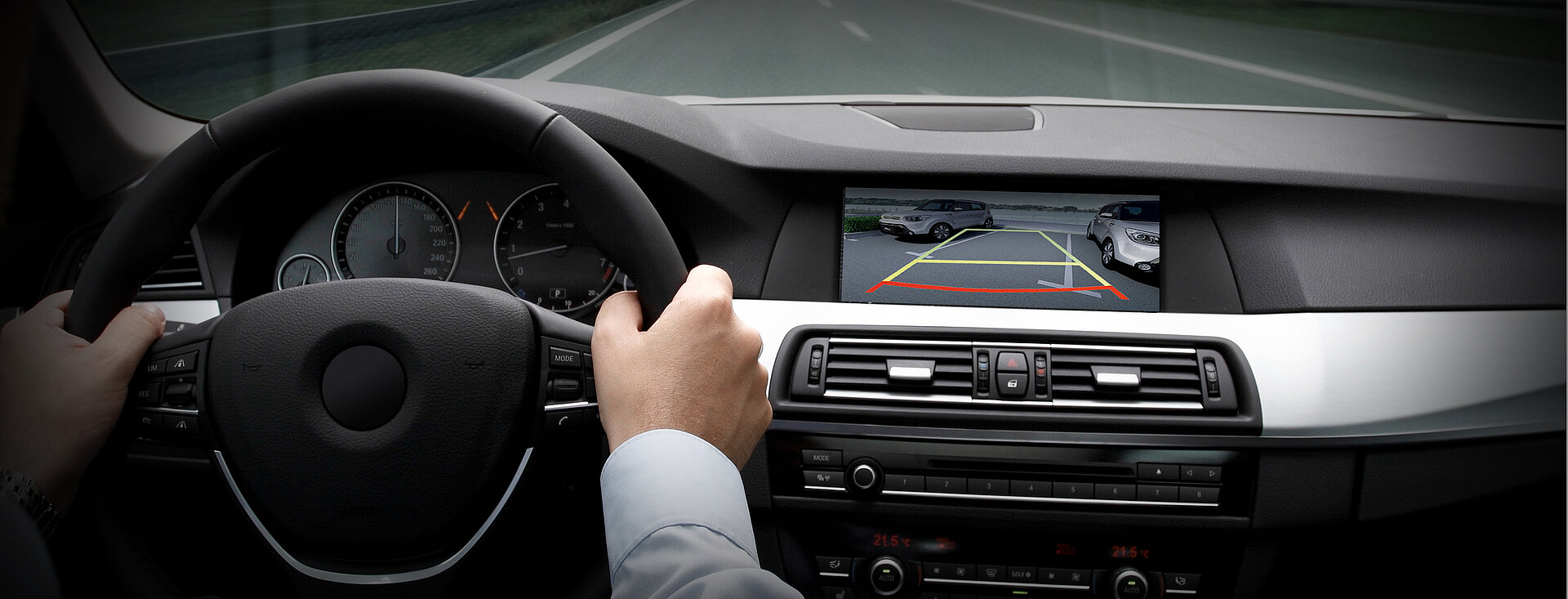

- The automatic changeover to the reversing camera is carried out by put in the reverse gear
- Manual changeover to rear view camera is possible
- Manual activation of rear view and front camera
- Compatible with all factory video applications (e.g., rear view camera, DVD changer, TV tuner)
- USB-port for software updates
- Installation Plug & Play
-
Working current <0,1mA Rated current ~190mA Power consumption ~2.6W Voltage working range 10.5V - 14.8V Operating temperature range -30°C bis +80°C Weight 284 g Dimensions 141 x 30 x 105 mm -

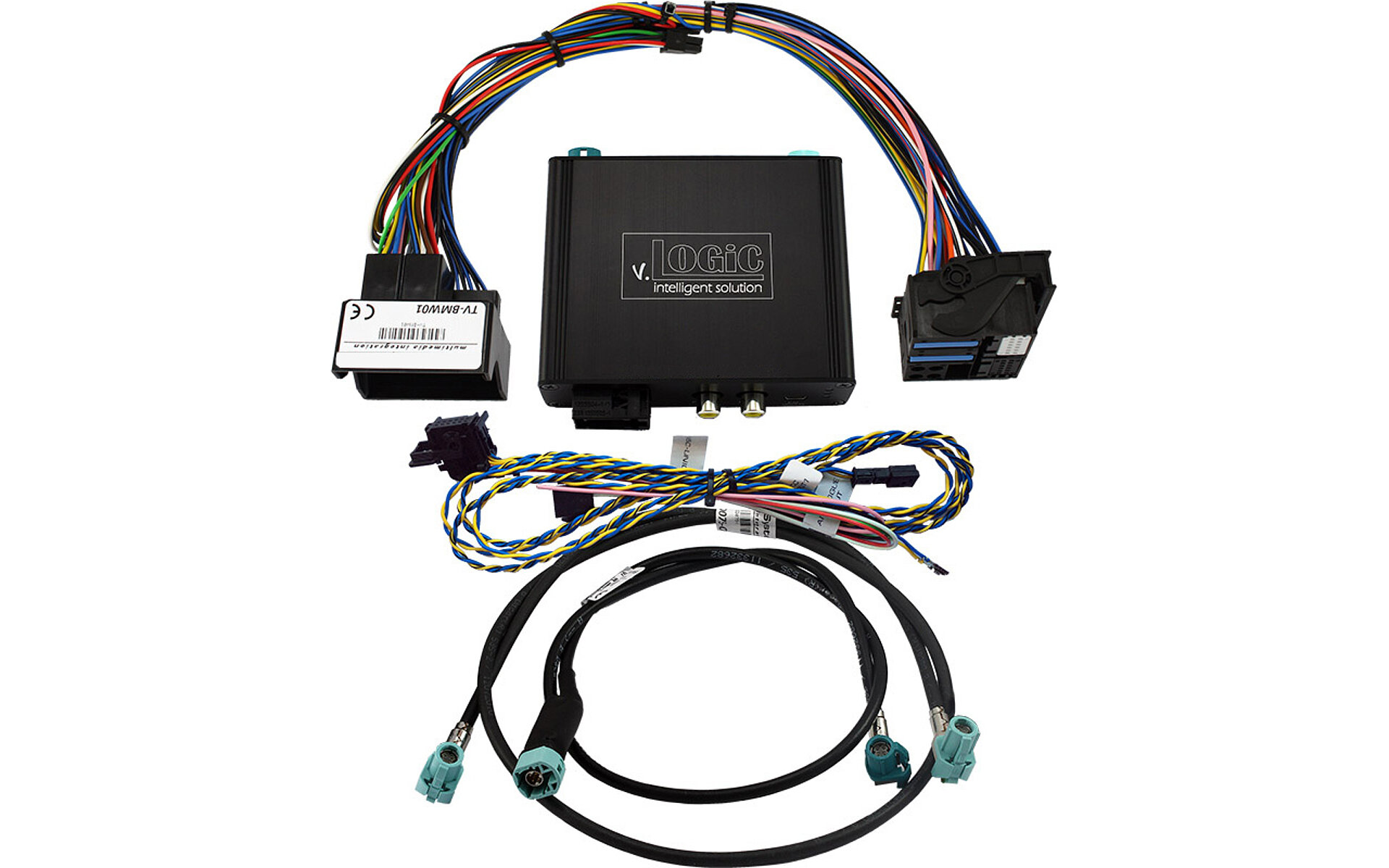

- Interface-box
- Plug & Play cable kit
- 2 x LVDS cable
- Instruction manual
-

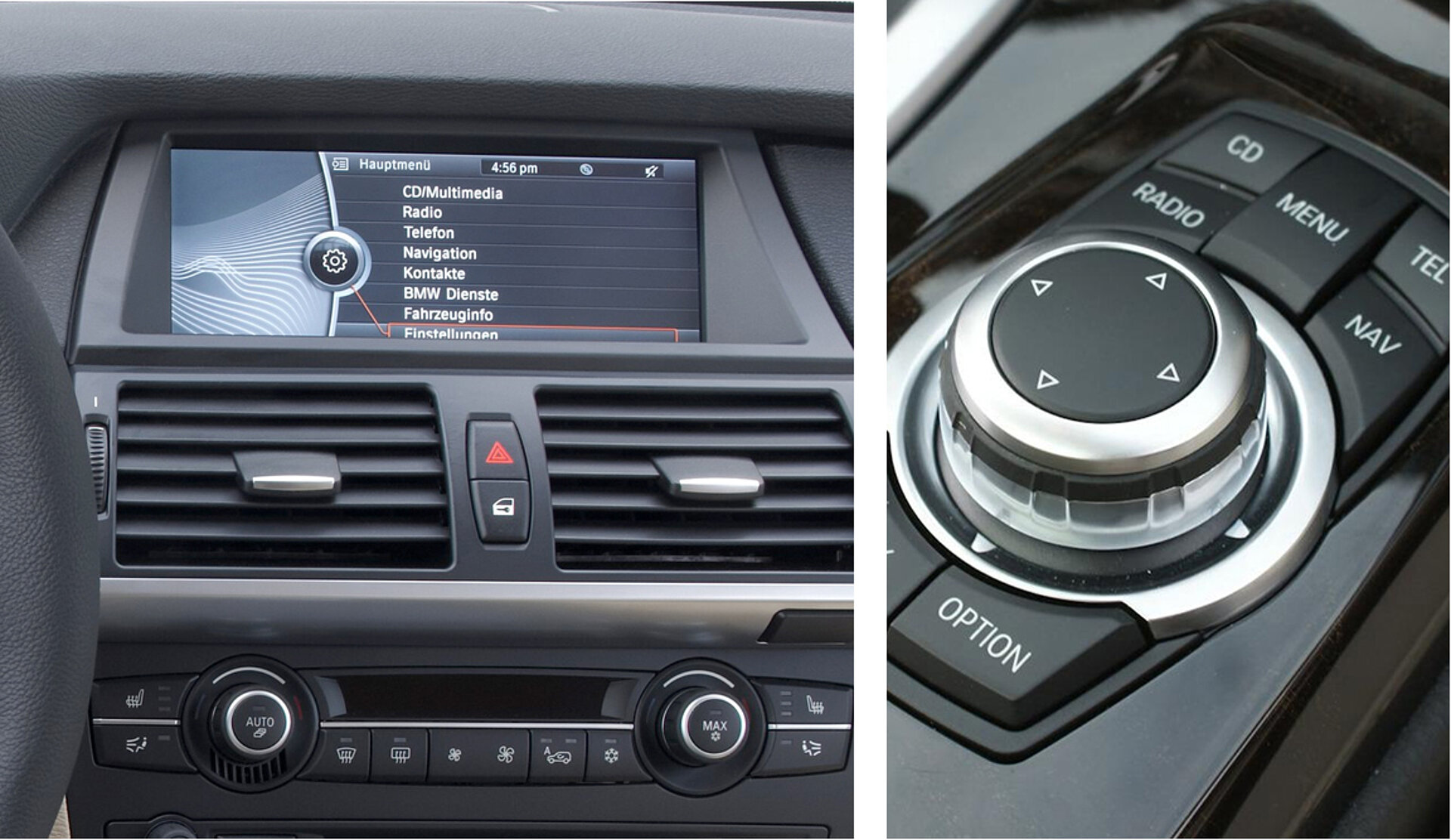

BMW with Professional Navigation CIC, Business Navigation M-ASK, Radio CHAMP - F Series - 6.5", 7", 8.8" or 10.25" monitor:
- 5 Series (F10/11)
- 6er (F12/F13)
- 7 series (F01/F02)
- GT5 (F07)
- X3 (F25) with 8-button iDrive
Technical changes and errors excepted.
