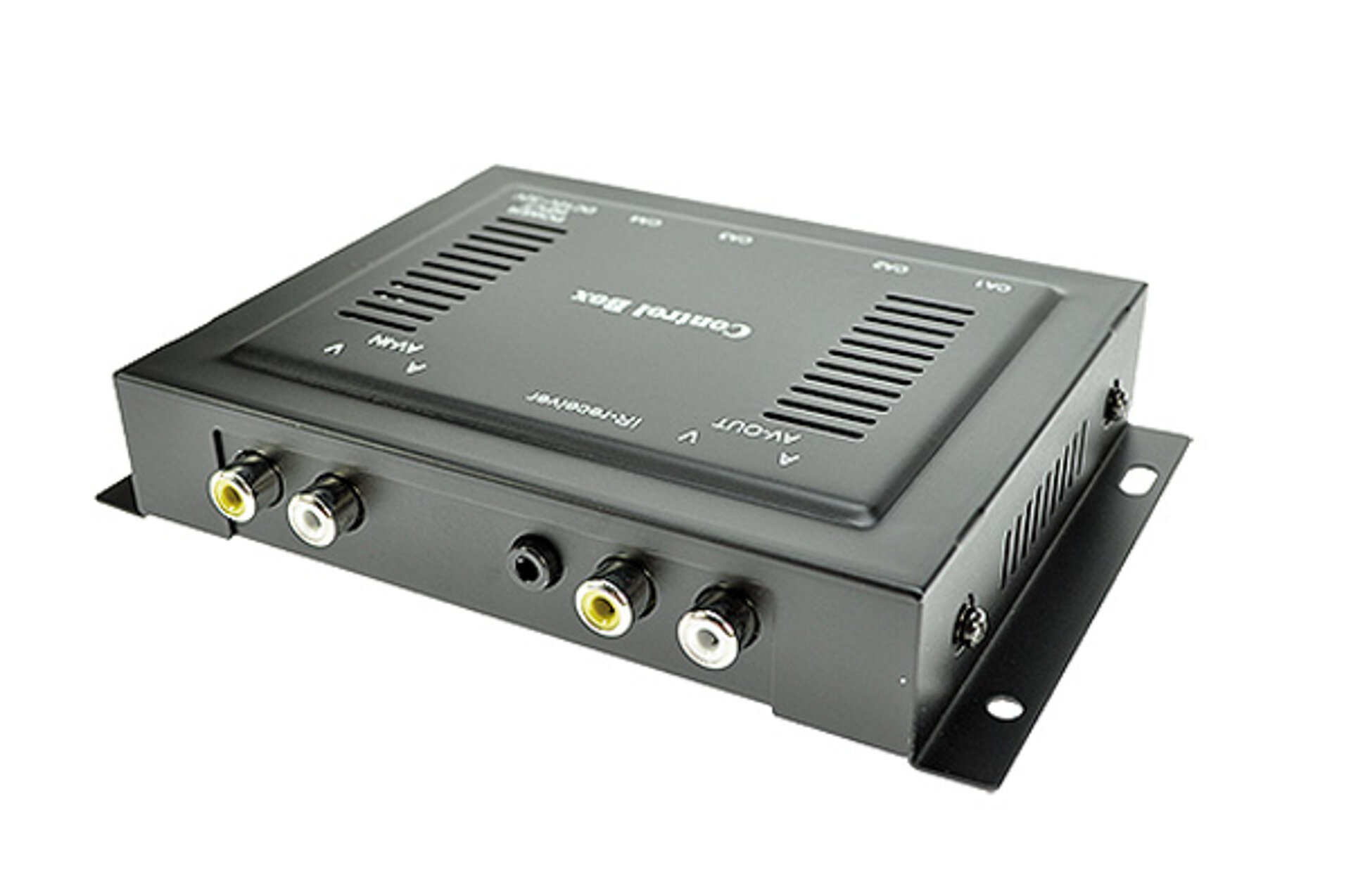

Control box for 4 cameras with quad picture function

Quad 7005QB

Switch box for 4 cameras.
4, 3, 2, 1 camera(s) to see at the same time or only one on the whole screen.
Changes every monitor to a quad picture monitor.

request product find a merchant
    • Switch box for 4 cameras
    • 4, 3, 2, 1 camera(s) to see at the same time or only one on the whole screen
    • Changes every monitor to a quad picture monitor
    • Switch via reverse gear or turn signal
    • Additional connection for a further A/V source
    • Power on function (adjustable)
    • Programmable via menu
    • Incl. external IR-eye and IR-remote control
    • Power supply 10 V to 32 V DC
    • Real-time quad display
    • 4 x camera inputs: AXION 4-Pin mini DIN jacks
    • 1 x audio/video input (RCA)
    • 1 x audio/video input (RCA)
    • PAL/NTSC switchable
    • Image display: CAM1, CAM2, CAM3, CAM4, AUX, Split2, Split3, Split4, PIP...
    • Power on function (adjustable)
    • On screen menu:

      • Dwell time for automatic sampling & automatic switch on
      • Sources in split mode
      • Mirror & normal picture function
      • Camera name
      • Automatic sampling
      • Distance scaling
      • Video system (NTSC/PAL)
    • Automatic switch on, when switch on signal is applied:(CAM1, CAM2, CAM3, CAM4, Split2)
    • Inclusive extended IR eye and IR remote control
    • Vibrations resistant up to 5,5 G
    • Case: steel
    • Power supply: 10 - 32 V DC
    • Power consumption: < 24 W
    • Operating temperature range: -30 °C to +75 °C
    • Storage temperature range: -40 °C to +85 °C
    • Dimensions (BxHxT): 154x28x105 mm
    • Weight: approx. 500 g

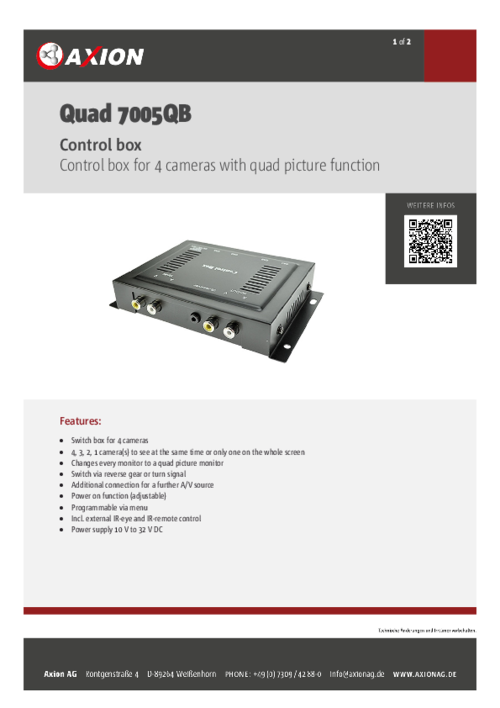

  • Download
Technical changes and errors excepted.
