            In the public passenger transportation sector the need of security increases. Spectacular assaults of criminals to passengers, molestations or vandalism can only be answered by increased observation. Our indoor cameras for buses and trains are are high quality products and vandalism proof. Cameras are deterrent and by record keeping the act itself and the identity of the offender can be detected.

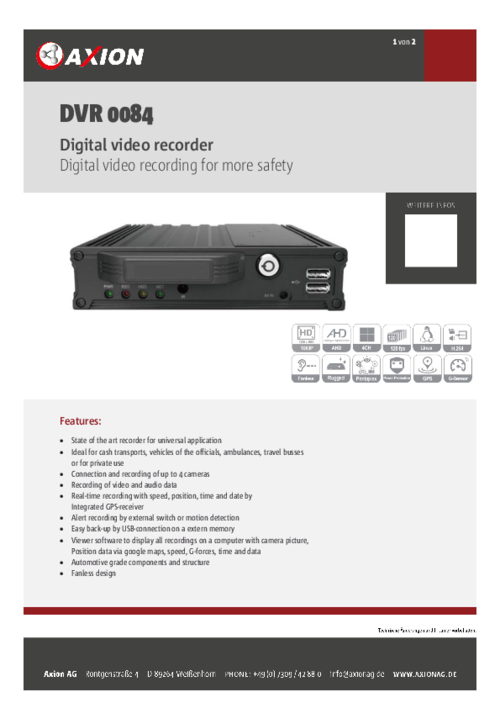

Digital video recorder
DVR 0084
Digital video recording for more safety.
Ideal for cash transports, vehicles of the officials, ambulances, travel busses or for private use.

-
            Digital Video Recording for more safety: The demand for more safety becomes worldwide a steady growing status.
 Today the surveillance of building, streets or stores is already common.
 Not only the the happening itself should be documented, it also should be deterrent.
 So the wish to use this surveillance possibilities also in vehicles is growing.
 For cash transports, vehicles of the officials, ambulances, travel buses or for private use this makes more and more sense.
 Events get comprehensible relation to time, what has happened, where it has happened and why it has happened.
 Axion has developed the “state of art” recorder DVR 0084 to match various needs.Your valuable data are stored safely: - Connection and recording of up to 4 cameras
- Recording of audio and video data
- High resolution – H.264 4ch at 120ips
- Data stored on 2.5" HDD or SSD
- Realtime recording with speed, position, time, date by the integrated GPS-receiver
- Integrated G-sensor
- Alert recording by external switch or motion detection
- Easy back-up via USB-port with any external HDD/USB stick
- Viewer software to display all recrodings on a computer with camera picture, position data via google maps,speed, G-forces, time and date
- Multi-tasking – record/playback/networking/back-up simultaneously
- Built-in buck boost for camera power supply Input: 9 – 35 V / Output: 12 V 1.5 A)
- Anti-Shock & vibration resistant design
- Automotive grade components & structure
- OPTION: Datatransmission to a central monitoring software or an external computer by router or Wifi (additional components needed)
- Dimensions (W × H × D): 160 x 165 x 47 mm

-
                    Video-input 4 (AXION MiniDIN) Video-output 1 (RCA) / 1 (HDMI) Audio-output 1 (RCA) USB- slots 2 Alarm-in 8 Alarm-out 2 Storage media SSD HD max. 2TB Power supply 12/24 V Operating temperature range -20 °C bis + 70 °C Dimensions (B x H x T) 160 x 165 x 47 mm Weight ca. 1100 g Certification CE,FCC,E-Mark,CLASS-B
-
                    1x Digital Video Rekorder
 2x Montagewinkel
 1x Power cord (4-Polig)
 1x Power cord alert input
 1x Power cord for 4x Camera In
 1x Power cord for 1x AV Out
 4x fixing screws with shock absorber
 6x fixing screws
 4x fixing screws for hard disk
 2x hard disk drive key
 1x GPS antenna
 1x manual
 1x CD (manual in pdf format, customer software)optionally available: SSD HD hard disk
