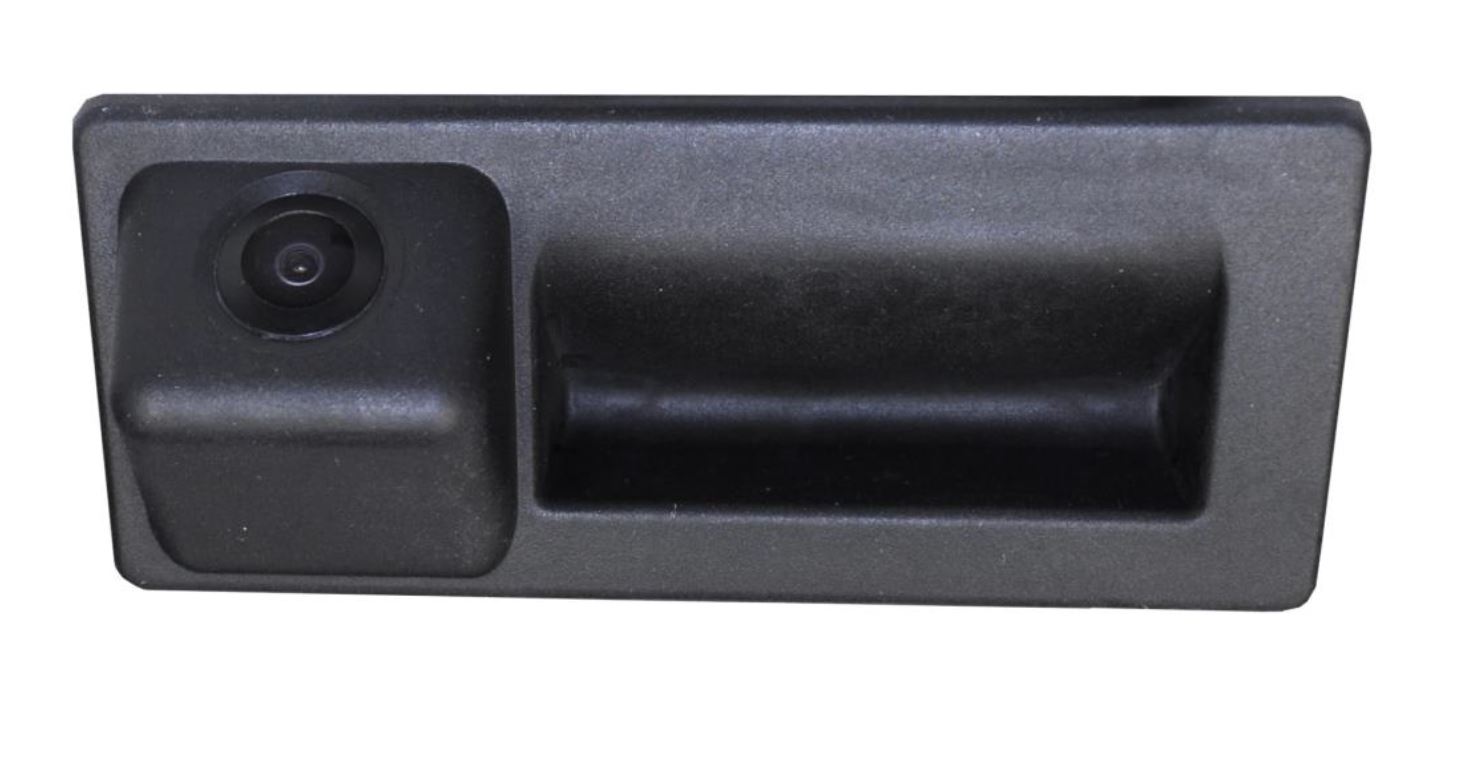

trunk handle camera VW

DBC-OEF-VAG1

high resolution colour camera in model-specific tailgate handle housing. Suitable for various VW/SKODA/SEAT and Audi models.

request product find a merchant

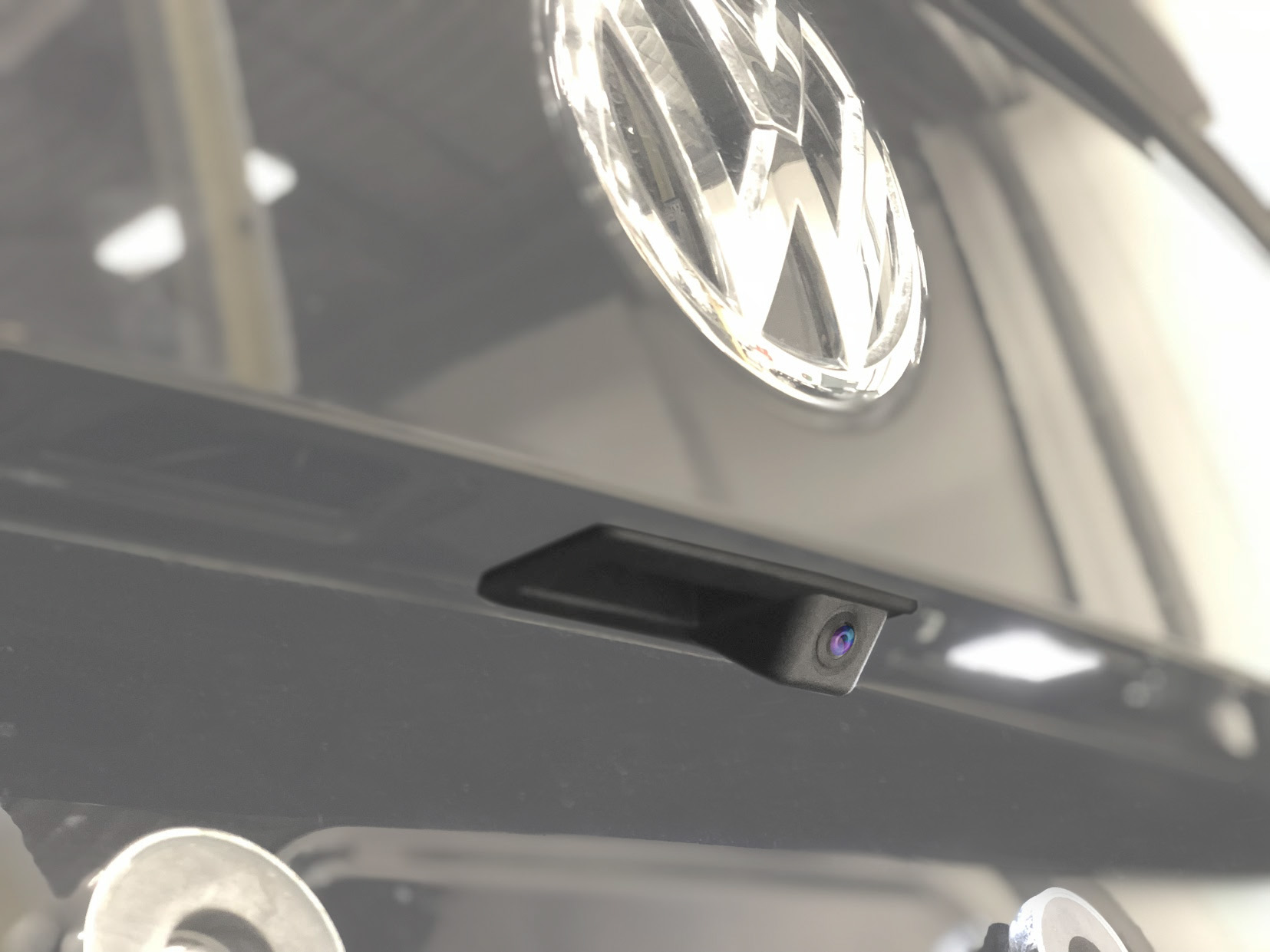

  • Rear view camera in the push-button for opening the tailgate for easy retrofitting by replacing the original tailgate opener handle with the AXION grip bar camera.

    Reliable and quick installation without drilling into the vehicle body is thus possible.

    Suitable for various VW/Skoda/Seat and Audi models, such as VW Caddy (2K), VW Tiguan (5N), VW Tiguan (5N), VW Touran (5T), AUDI A4 (8W), Skoda Octavia (1Z), Skoda Octavia (5E), Skoda Superb (3T), Skoda Superb (3V), Skoda Yeti (5L)
    (fits in vehicles in which the original pushbutton with VAG part number 3V0 827 566 or 3V0827566 is installed)

    Special features:

    • Automatic day/night switchover
    • Protection class IP69K
    • Resolution 800 TV lines
    • Automatic backlight compensation
    • Parking lines can be switched on/off
    • IP69K
    • 8m camera cable (RCA)
    • 1/3 cmos HD image sensor
    • Video format: NTSC
    • Resolution: 800 TV lines
    • Viewing angle: 180° (D), 150° (H), 100° (V)
    • Minimum lighting: 0.02 lux
    • Parking lines on/off switchable
    • Power consumption: 40~ 50mA
    • Power supply: DC 6V ~ 26V
    • Dynamic range: 62dB
    • Automatic backlight compensation
    • Automatic brightness adjustment
    • Operating temperature range: -30°C to +75°C
    • Storage temperature range: -40°C to +85°C
    • Protection class: IP69K

  • Suitable for various VW/Skoda/Seat and Audi models, such as:

    • VW Caddy (2K) ab 2016 >> ...
    • VW Golf VI (5K) ab 2010 >> 2014
    • VW Golf VII (5G) ab 2014 >> 2014
    • VW Golf Variant VI (5K) ab 2010 >> 2014
    • VW Golf Variant VII (5G) ab 2014 >> 2014
    • VW Golf Plus (52) ab 2012 >> 2014
    • VW Jetta (1K) ab 2011 >> 2011
    • VW Jetta (16) ab 2011 >> ...
    • VW Passat (3C) ab 2008 >> 2011
    • VW Passat (3C) ab 2011 >> 2015
    • VW Passat (3G) ab 2015 >> 2015
    • VW Sharan (7N) ab 2011 >> ...
    • VW Tiguan (5N) ab 2016 >> 2016
    • VW Tiguan (5N) ab 2016 >> ...
    • VW Touran (1T) ab 2011 >> 2015
    • VW Touran (5T) ab 2016 >> ...
    • AUDI A3 (8P) ab 2013 >> 2013
    • AUDI A3 (8V) ab 2013 >> ...
    • AUDI A4 (8E) ab 2008 >> 2008
    • AUDI A4 (8K) ab 2008 >> 2015
    • AUDI A4 (8W) ab 2016 >> ...
    • Audi A3 (8V) ab 2013 >>
    • AUDI A5 (8T) ab 2008 >> 2016
    • AUDI A6 (4F) ab 2011 >> 2011
    • AUDI A6 (4G) ab 2011 >> ...
    • AUDI A7 (4G) ab 2011 >> ...
    • AUDI Q3 (8U) ab 2012 >> ...
    • AUDI Q5 (8R) ab 2009 >> ...
    • AUDI Q7 (4M) ab 2016 >> ...
    • Skoda Octavia (1Z) ab 2013 >> 2013
    • Skoda Octavia (5E) ab 2013 >> ...
    • Skoda Superb (3T) ab 2015 >> 2015
    • Skoda Superb (3V) ab 2015 >> ...
    • Skoda Yeti (5L) ab 2010 >> ...
    • suitable for vehicles in which the original push button with VAG part number 3V0 827 566 or 3V0827566, 5N0.827 566T is installed

    (Information without guarantee)

Technical changes and errors excepted.
