compact AHD camera with 180° viewing angle

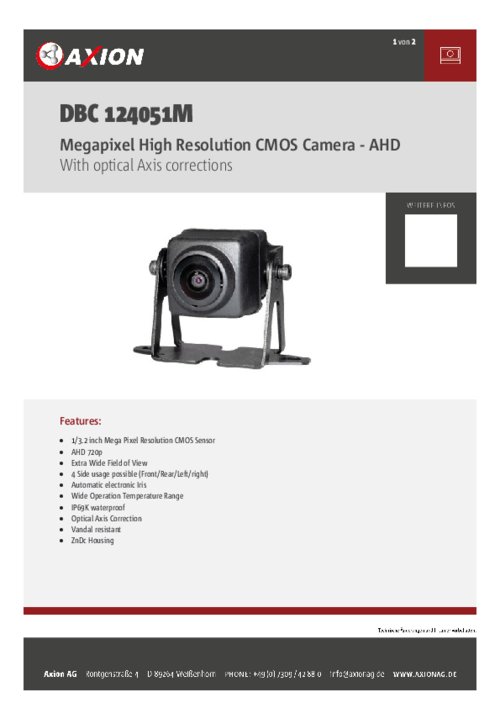

DBC 124051M

High-end mini AHD (720p) camera with 180° viewing angle, IP69K

request product find a merchant

  • High-end mini AHD (720p) camera with 180° viewing angle, IP69K

    • 1.23 megapixel CMOS mini color camera for demanding applications
    • AHD 720p
    • Optical axis correction for distortion-free image
    • Special mounting system for front/rear/side camera use
    • Min. Illumination: 0.1 lux
    • Extremely wide 180° field of view
    • Resistant to vandalism/humidity IP69K
    • Vibration resistance: 10G / Shock: 100G
    • Temperature range: -40°C to +85°C
    • Power supply: 12V DC
    • MINAX connector
    • Dimensions (W × H × D): 28 × 28 × 40 mm
  • Image-SensorSony 1.23 Megapixel chipset
    Built-in microphoneno
    CaseAluminium
    Electronic Autoshutter with IR-LED Beamerno
    Field of view180° (152° H / 88° V)
    Normal/Mirror Switchingyes
    Protection classIP69K
    Light sensitivity0,5 Lux
    Integrated heatingno
    Power supply9-14 V
    Operating temperature range-40 °C to +85 °C
    Dimensions (WxHxD)28 x 28 x 40 mm
    Weightapprox. 105 g (camera only)
    • DBC 1424051M - Camera
    • WPC 6 - 20m camera cable
  • Download
Technical changes and errors excepted.
