Heavy Duty waterproof 10“ Quad Monitor AHD

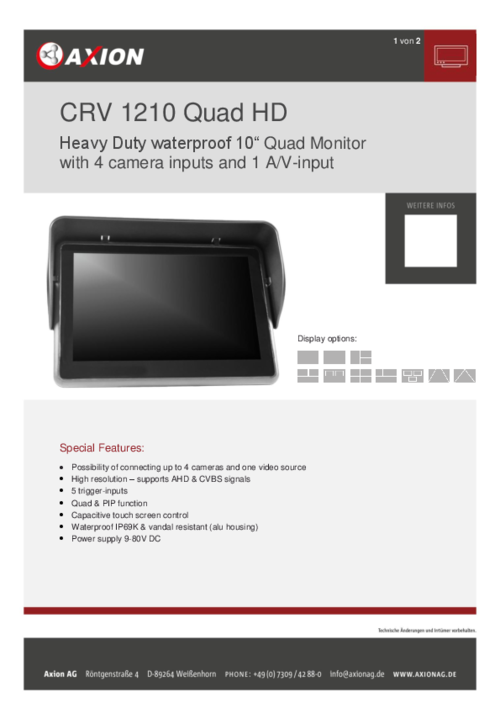

CRV 1210 Quad HD

High-resolution 10" (25 cm) 16:9 digital LCD monitor for connecting up to 4 cameras and a video source

QHD /AHD / CVBS compatible


request product find a merchant

  • Robust and high-resolution quad monitor for the toughest operating conditions in vehicles, construction machinery, agricultural machinery and many more. The display is operated via the special touch screen, which enables convenient operation even under the toughest conditions.

    • 10" (25 cm) 16:9 digital LCD monitor for connecting up to 4 cameras and a video source
    • Quad & picture-in-picture function
    • High resolution - supports AHD & analog signals
    • Built-in speaker
    • Automatic brightness control with day/night switching
    • Waterproof IP69K with robust housing
    • 5 trigger inputs
    • Speed switch
    • Touch display operation
    • Adjustable guide lines for better maneuvering
    • Operating temperature: -40° to +75°C
    • Power supply: 9-80 Vdc
    • Dimensions (W × H × D): 262 x 183 x 33 mm
    • 10" TFT LCD monitor, 16:9
    • Digital display with LED backlight
    • AHD 1080p/720p, CVBS PAL/NTSC
    • Brightness: 500cd/m²
    • Resolution: 1280 * 800
    • Power supply: 9-80 Vdc
    • Viewing angle: (up/down): 89°/89°, (left/right): 89°/89°
    • Vibration resistant up to 10 G
    • 5 trigger inputs -
    • 4x video-in for cameras (AXION Mini-DIN) / 1x video-in cinch
    • Speed switch
    • Automatic brightness control with day/night switching
    • Built-in loudspeaker
    • Waterproof IP69K with robust housing
    • Touch display operation
    • Adjustable guide lines for better maneuvering
    • Operating temperature: -40 °C to +75 °C
    • Dimensions (WxHxD) 262 x 183 x 33 mm
    • Weight: approx. 960 g
    • CRV 1210 Monitor
    • Sun visor
    • Connection cable set
    • Monitor stand
    • Instruction manual
  • Download
Technical changes and errors excepted.
