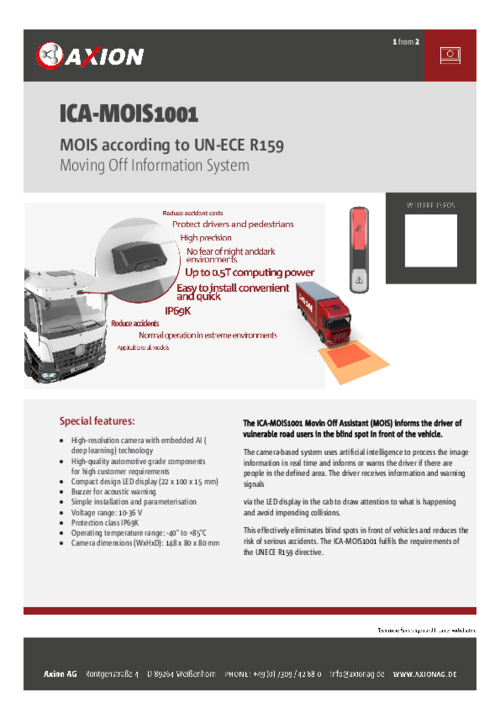

ICA-MOIS1001

MOIS according to UN-ECE R159
Moving Off Information System

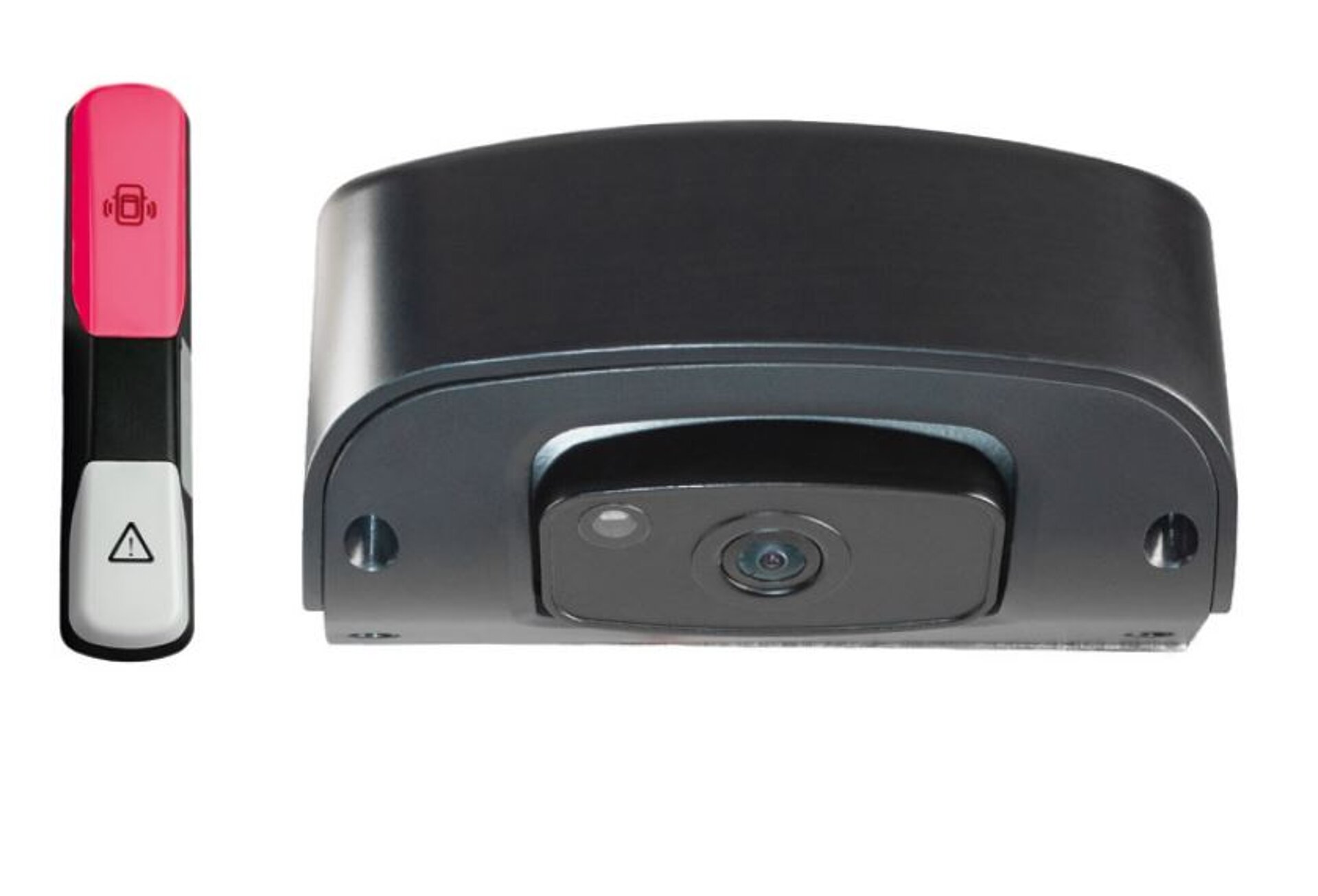

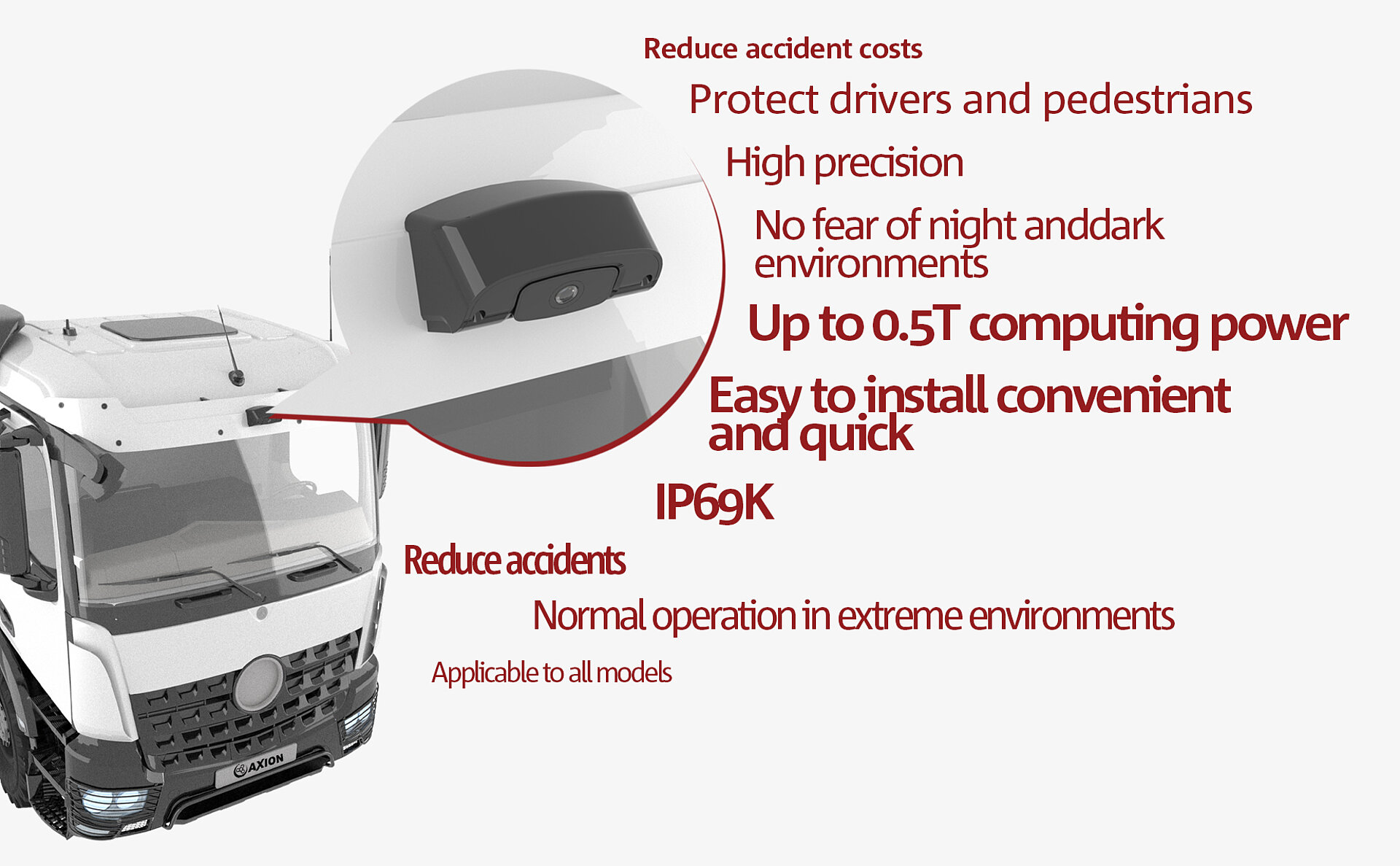

The ICA-MOIS1001 Moving Off Assistant (MOIS) informs the driver of vulnerable road users in the blind spot in front of the vehicle.

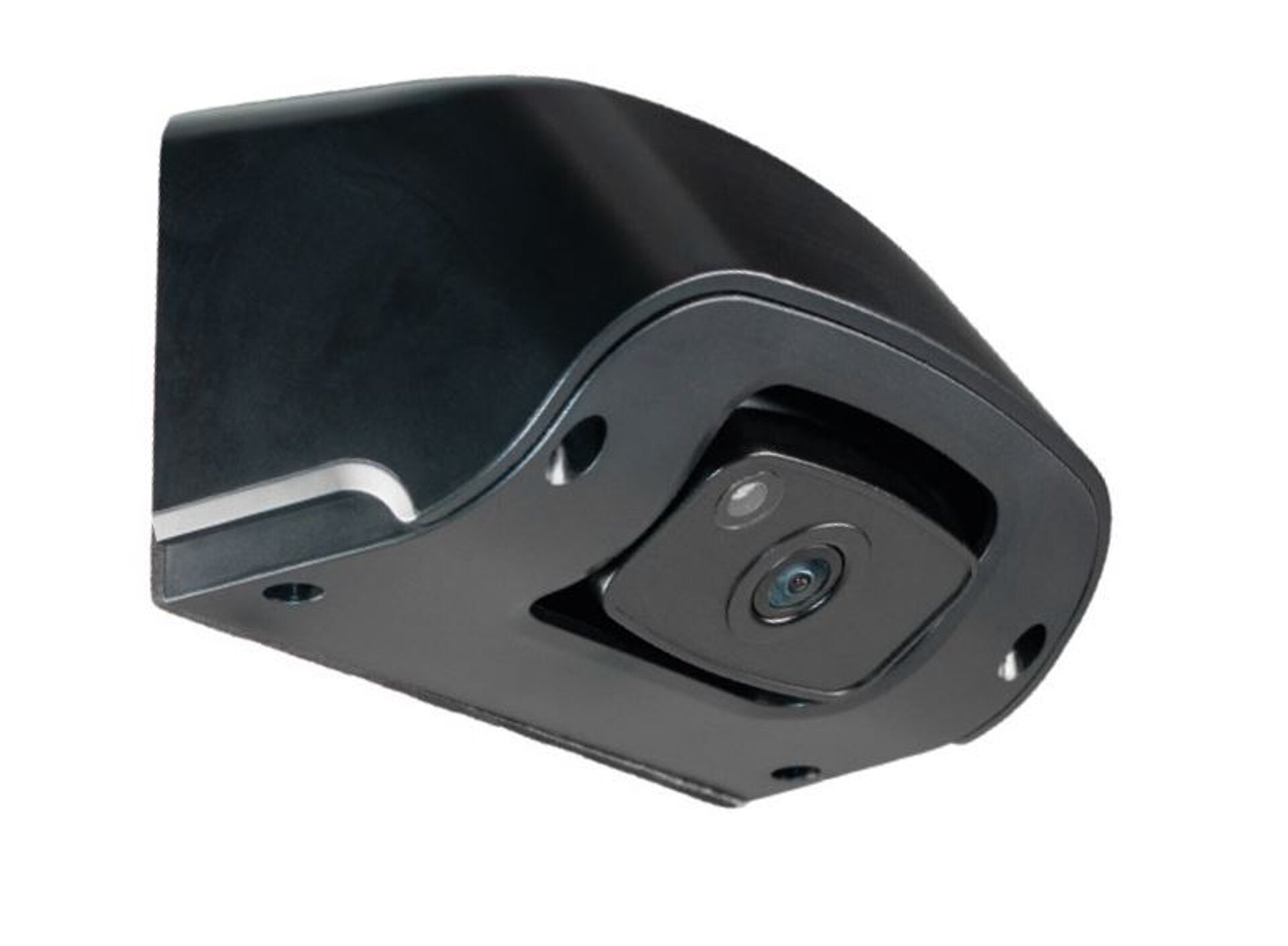

The camera-based system uses artificial intelligence to process the image information in real time and informs or warns the driver if there are people in the defined area. The driver receives information and warning signals
via the LED display in the cab to draw attention to what is happening and avoid impending collisions.
This effectively eliminates blind spots in front of vehicles and reduces the risk of serious accidents. The ICA-MOIS1001 fulfils the requirements of the UNECE R159 directive.

Features:

• High-resolution camera with embedded AI ( deep learning) technology
• High-quality automotive grade components for high customer requirements
• Compact design LED display (22 x 100 x 15 mm)
• Buzzer for acoustic warning
• Simple installation and parameterisation
• Voltage range: 10-36 V
• Protection class IP69K
• Operating temperature range: -40° to +85°C
• Camera dimensions (WxHxD): 148 x 80 x 80 mm
• Passed ECE R159 Performance Test (TUV Rheinland)
