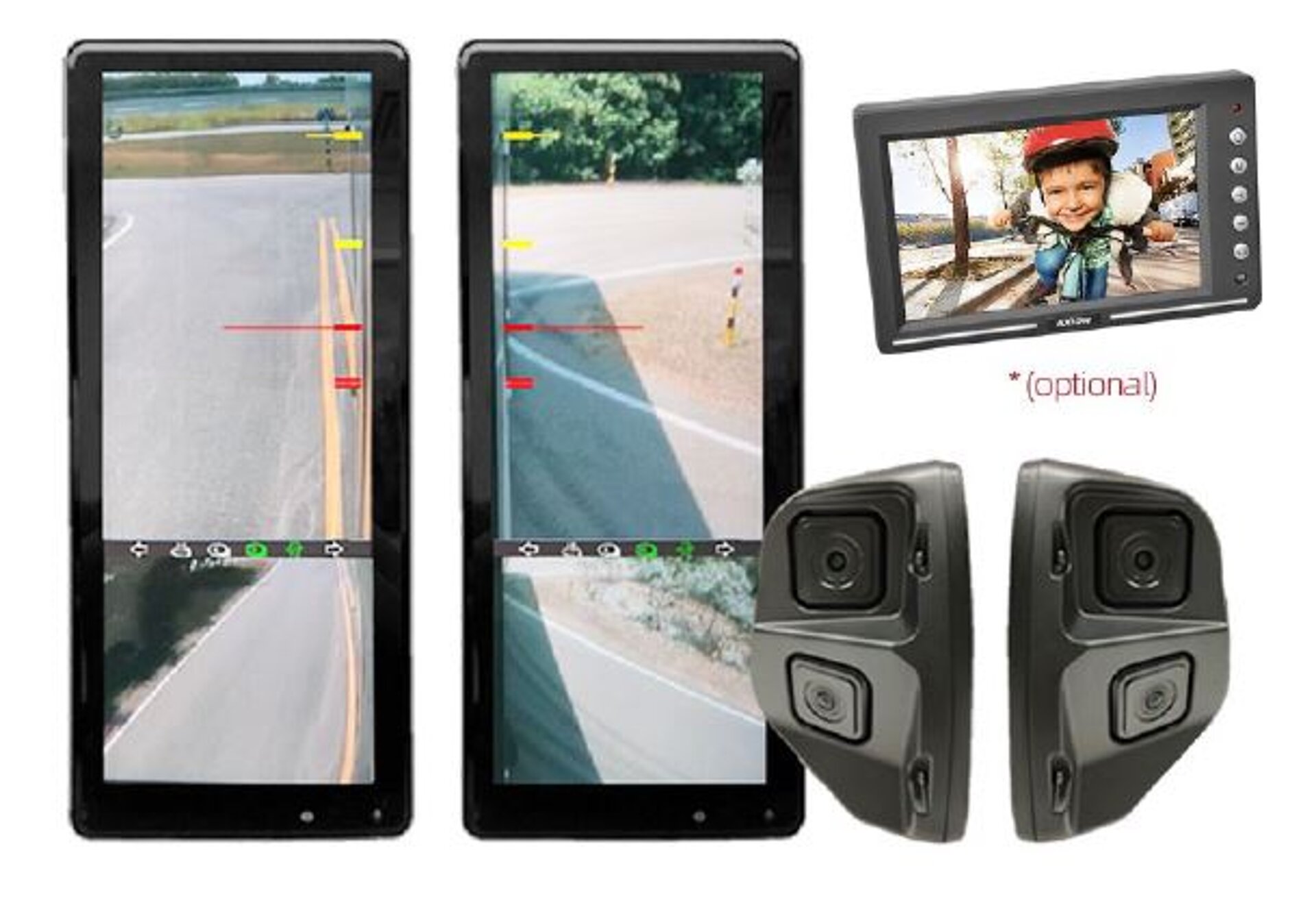

SideVis SV888

Camera monitor systems (CMS) have been permitted as a replacement for conventional mirrors since July 2016. KMS offer several advantages:
They reduce air resistance, always show clear viewing areas without glare or light reflections, and they enable additional functions, such as
auxiliary lines in the display image.

The SideVis mirror replacement system was developed and type-approved in accordance with UN regulation R46.
Certified according to UN ECE R46 for field of vision classes II, IV & V

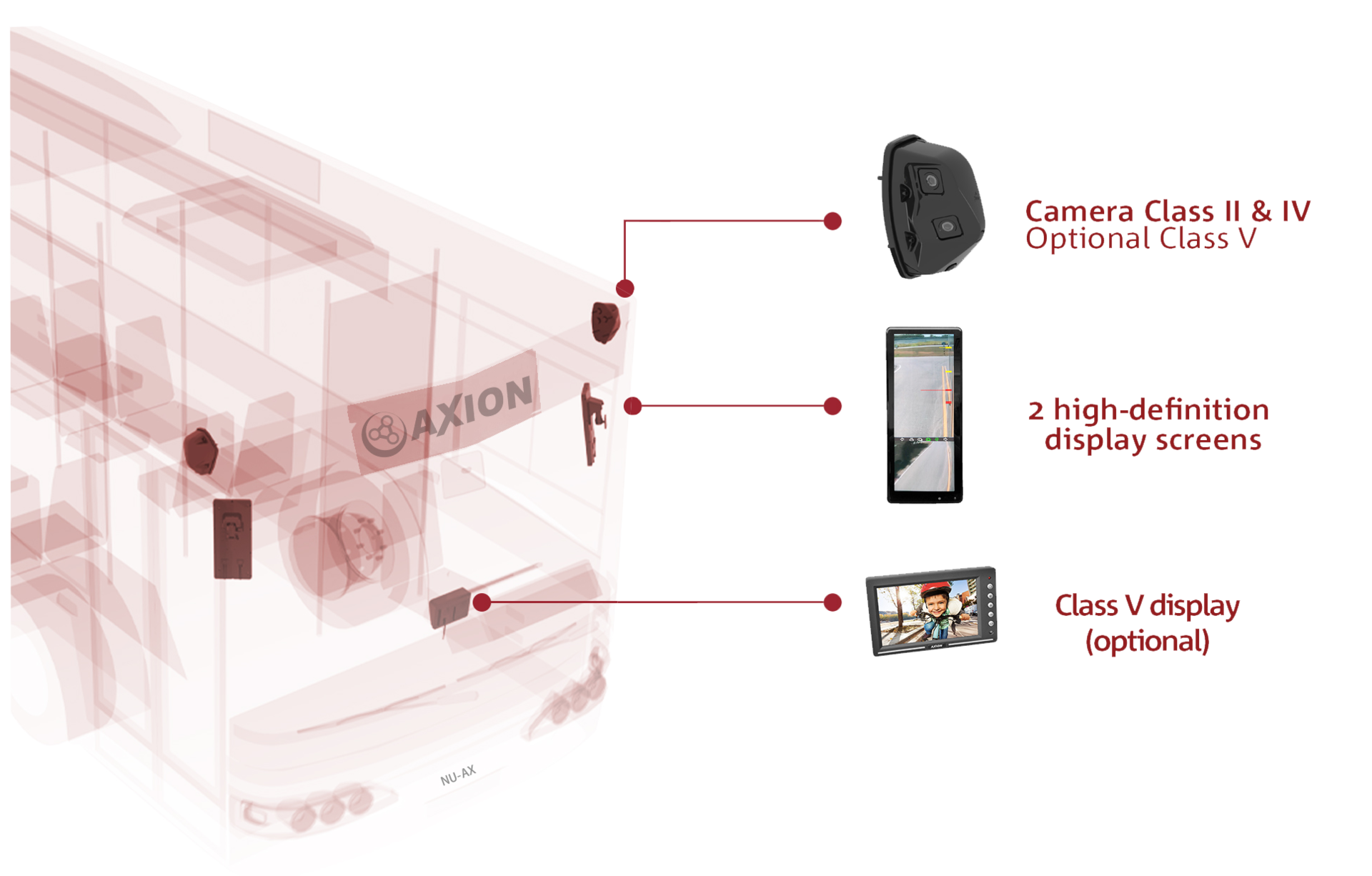

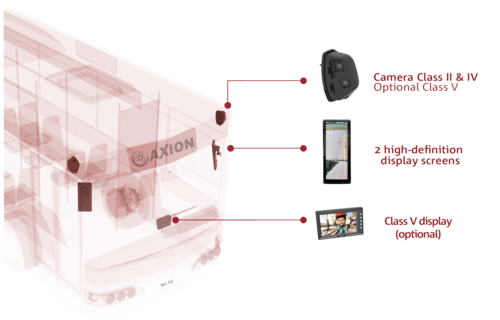

• Digital mirror replacement system for classes II and IV
• Variant with class V optionally available
• Adjustable display range to suit the vehicle
• Adjustable guide lines in the monitor
• Camera heating against frost
• Expandable by class V viewing area
• High-resolution AHD cameras with 170° viewing angle
• Compact housing for use in buses and motorhomes (lorry version in development)
• Dust and water-protected in accordance with IP69K
• 12.3" AHD monitors for mounting on the A-pillars
• Adjustable display range to suit the vehicle
• Intelligent chip
  • system diagnosis
  • CAN communication option
  • Internal/external UART communication
• Activation of warning messages
• Modular design concept
• OEM-specific customisation possible
