AXION Smart Vision


Intelligent Person Detection

embedded AI camera

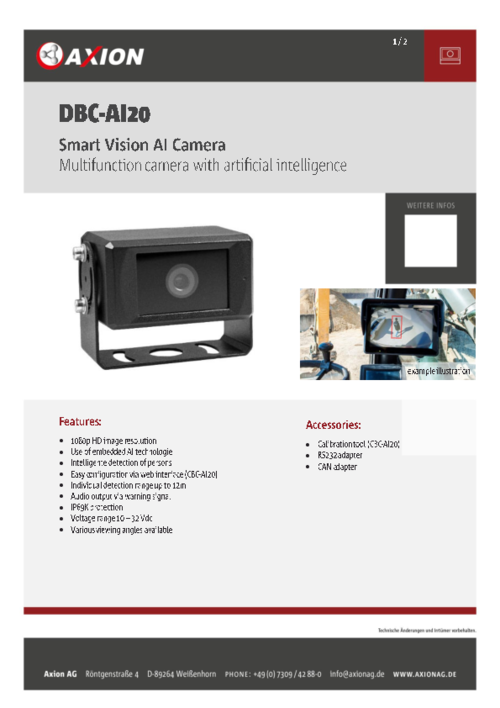

DBC-AI20 Smart Vision

Smart Vision AI Camera with person detection incl. 10 m camera cable
Recognition of people and/or vehicles using artificial intelligence

  • Whether working areas, maneuvering areas or blind spots - the Smart Vision AI Camera from AXION offers a simple solution for every area of application. The fully integrated “embedded” AI algorithm recognizes people in a freely definable area without having to rely on additional hardware or control devices.

    Configuration is intuitive and browser-based (using a PC or smartphone) via a WLAN connection (CBC-AI calibration tool available separately). The person detection can thus be ideally adjusted to the respective application after installation.

    The multi-level warning concept helps the vehicle driver to assess their surroundings more easily and to react to dangerous situations in good time. Collision avoidance is significantly improved, especially when working with vehicles on a long-term basis, even when the driver's attention level drops.

    Application examples:

    • Monitoring of work areas and maneuvering areas
    • Use with construction vehicles
    • Use on agricultural machinery
    • Underrun protection for waste disposal vehicles
    • High-end reversing camera with person detection

    Use for example on:

    • Wheel loaders
    • Telescopic loaders
    • Excavators
    • Graders
    • Farm loaders
    • Feed mixers
    • Silage rolling vehicles
    • Garbage collecting vehicle
    • Handling machines at scrap yard
    • and many others



    • Detection range 12 m and further
    • Viewing angle 140°
    • Resolution 2 MP (1080p)
    • Video output AHD
    • Frame rate 25 / 30 FPS
    • Audio output for warning signal
    • Voltage range 10 - 32 Vdc
    • Dust and water-protected according to IP69K
    • Working temperature -20 °C to +70 °C
    • Camera mounting height:  up to 4 m
    • Can be combined with all AXION AHD/QHD compatible monitors
  • Standard Delivery Scope

    • DBC-AI20 camera
      • indluding video cable with alarm output
    • 10m extension cable

    Accessories

    • WiFi module with connection cable
    • Adapter for external power supply
  • Compatible with the following AHD monitors:

    • CRV 5101 M
    • CRV 7105 M HD
    • CRV 7103 M HD
    • CRV 7108 Q HD
    • CRV 7270 Quad HD
    • CRV 1110 DUA HD
    • CRV 1210 Quad HD
Technical changes and errors excepted.

Kombatible AHD Monitore
